Modem LTE – Tmcel

4G LTE WIFI

Feature	Description
Language	Multi language (English/Chinese)
Networks	2G, 3G, 4G LTE
Technical Standard	WLAN: IEEE 802.11ac/b/g/n
Working frequency Bands	LTE FDD B1/B3/B5/B8/B20/B28(Optional); LTE FDD: B38/B41&B41(Optional); WCDMA:B1/B2/B5/B8(Optional); GSM: B2/B5/B8(Optional)
Flash	1GB
SDRAM	512MB
WIFI	802.11 b/g/n, 2.4 HGz 150 Mbps
LED indicators	Power/Internet/WIFI/Message/Baterry/Ethernet
Button	Reset, WPS/WIFI, Power/Software Reset Button
Power supply	Input: Universal range 100-240VAC; Output: 5V/1A
Battery	2300 mAh/300mAh(Optional)
Interface	Support SMS/USSD/Phonebook Web User Interface
Conectors	LAN port that allows to connect Modem to PC Support microSD card slot(up to 32G) USIM Slot that supports standard 1.8V/3.0V
Users	Up to 9 users WI-FI (8Wi-Fi+1USB)
Box contains	Up to 9 users WI-FI (8Wi-Fi+1USB)
Environmental Specification
Operating Temperature	Min - 0 Max - 45 ºC
Storage Temperature	Min - (-40) Max - 85 ºC
Operating Humidity	Min - 5 Max - 95 %
Storage Humidity	Min - 5 Max - 95 %

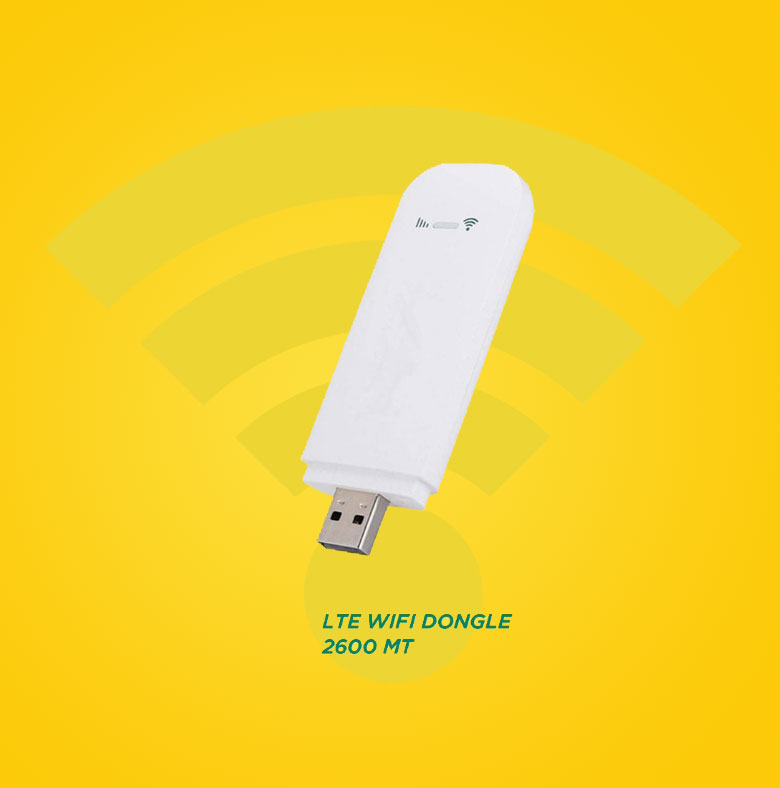

4G LTE MODEM USB Wi-Fi (DONGLE)

Feature	Description
Language	Multi language (English/Chinese)
Networks	2G, 3G, 4G LTE
Technical Standard	WLAN: IEEE 802.11ac/b/g/n
Working frequency Bands	LTE FDD B1/B2/B3/B4/B5/B7/B8/B20/B38/B39/B40/B41 ; WCDMA:B1/B2/B5/B8(Optional); B2/B5/B8(Optional) WLAN 2.4GHz
Flash	1GB
SDRAM	512MB
WIFI	802.11 b/g/n, 2.4 HGz 150 Mbps Support WEP-OPEN/WPA-PDK/WPA2-PSK(WPA/WPAS-PSK) Encryption
Data Rate	DL 150Mbps UL 50Mbps
LED indicators	Power/Internet/WIFI
Button	Reset, WPS/WIFI, Power/Software Reset Button
Interface	Support SMS/USSD/Phonebook Support compatible with all adapter(5V==1000mAh) Support Plug&Play Web User Interface Support microSD card slot(up to 32G)
Users	Up to 10 users WI-FI
Box contains	Unit, User guide
Environmental Specification
Operating Temperature	Min - 0 Max - 45 ºC
Storage Temperature	Min - (-40) Max - 85 ºC
Operating Humidity	Min - 5 Max - 95 %
Storage Humidity	Min - 5 Max - 95 %
